ECLIPSE HT Instruments Clamp Meter

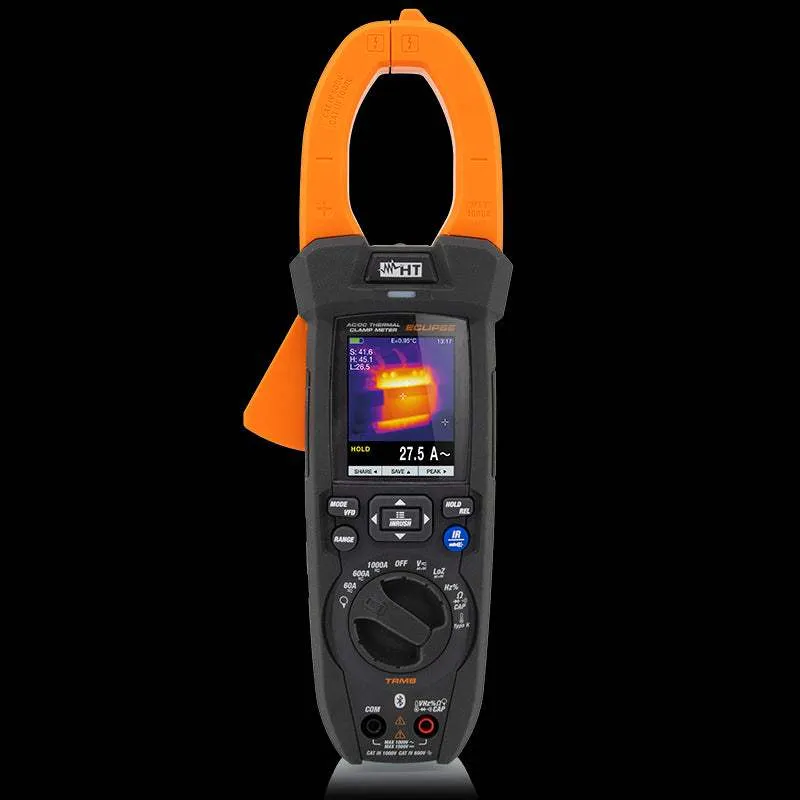

ECLIPSE AC/DC TRMS 1000A clamp meter with integrated thermal imager
Features:
ECLIPSE has been designed to measure AC/DC current up to 1000A, DC voltage up to 1500V and AC voltage up to 1000V in TRMS reaching CAT IV 600V and CAT III 1000V in compliance with safety standard IEC/EN61010-1. The clamp is provided with a display with 6000 measuring spots with backlight and bargraph to allow for a simple reading even in poorly lit environments. ECLIPSE also measures Resistance, Frequency, Capacitance and Temperature with K-type probe and infrared temperature with built-in thermal camera. The Bluetooth connection allows for the transfer of the saved snapshots by means of the dedicated App HTMercury.
Specifications:
Functions
- TRMS
- Current measuring range 1000A
- AC/DC current AC DC
- AC/DC voltage 1000VAC/1500VDC
- Leakage current External Clamp
- Frequency
- Resistance and continuity test with buzzer
- Capacity
- Diode test
- Duty Cycle (%)
- Temperature with K-type probe
- AC/DC current with external clamp transducer
- Inrush current measurement (INRUSH)
- Measurement category CAT IV 600V CAT III 1000V
- Maximum diameter for clamp 40mm
- Measuring counts 6000
- Backlight
- Bargraph
- Autorange
- Auto power off
- Detection of AC voltage without contact
- Data HOLD function
- MIN/MAX function
- PEAK function
- Relative measurement
- Thermal imager
- Colour LCD display
- Internal memory for data saving
- Datalogger and Graph
- PC / Smartphone or Tablet interface Bluetooth
- Power supply Li-ION battery
- Size (LxWx H) (mm) 280x100x50
- Weight in grams (batteries included) 505
- IR sensor resolution 80x80
- Temperature range 20 260°C / -4 500°F
- Thermal sensitivity
- NETD <100mK
- Spectrum range 8 14µm
- IFOV (@1m) 4.53mrad
- Type of IR sensor UFPA
- Frequency 50Hz
- Field of view (FOV) 21° X 21°
- Focus width of standard lens 7,5mm
- Focusing of IR optics Fixed
- 3 cursors: Central, Min, Max.
- Colour Palettes 5
- Readings in °C, °F, °K
- Class 2 laser pointer
- Integrated white light illuminator
- Manual and automatic span Automatic
- Standard format of saved images JPEG BMP
- Recharging system External charging base
- Duration 8 hours
- Provided external power supply 100/240VAC (50/60Hz)/ 12VDC
- Operating temperature 5°C 40°C
- Operating humidity <80%RH
- -20°C 60°C
- Storage humidity <80%RH
- Mechanical protection IP40
Guidelines
- IEC/EN61010-1
