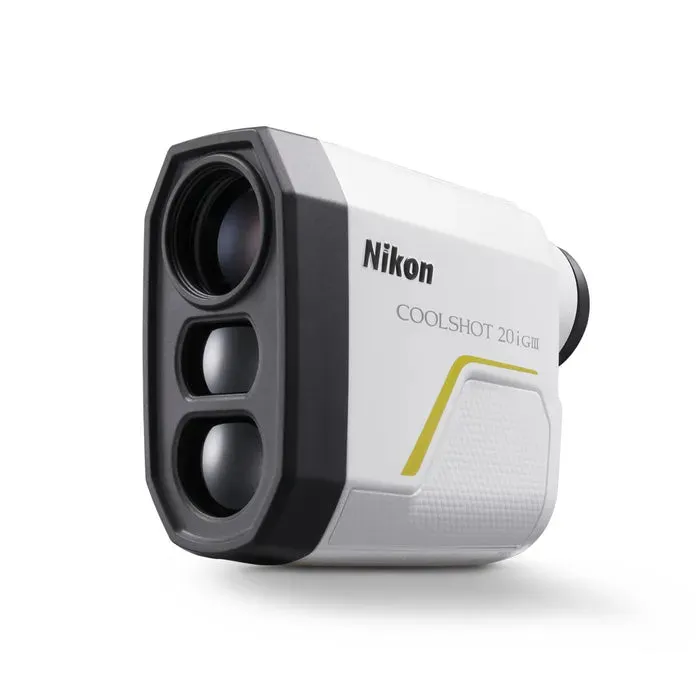

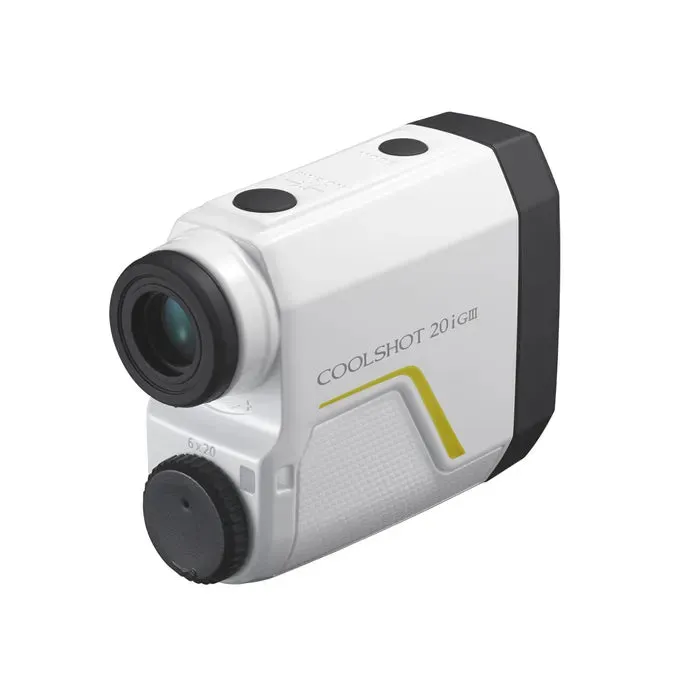

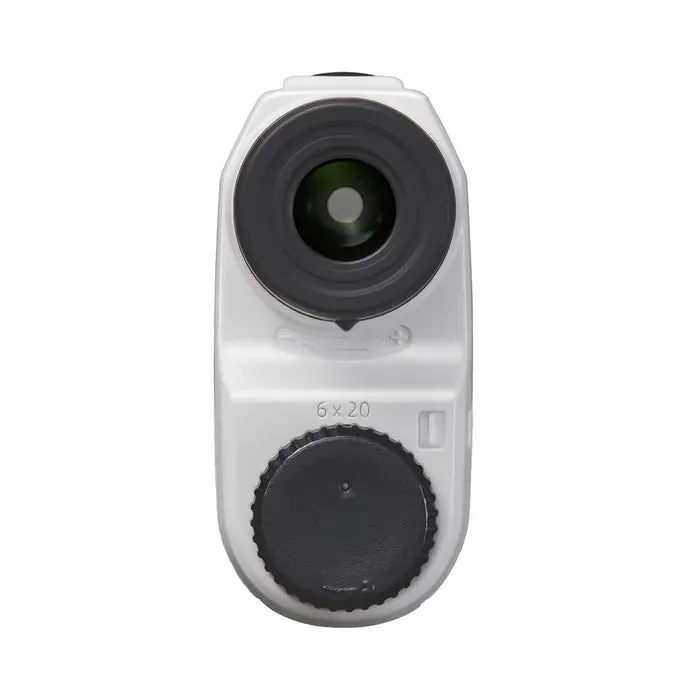

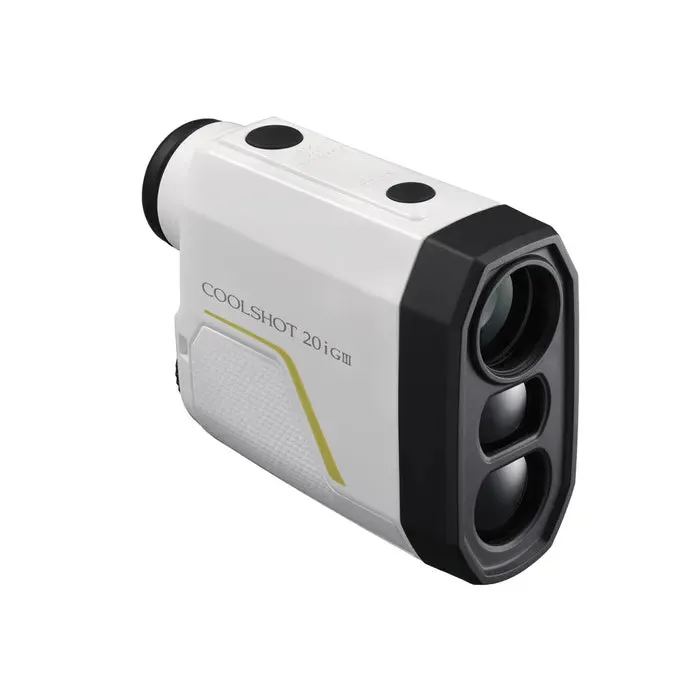

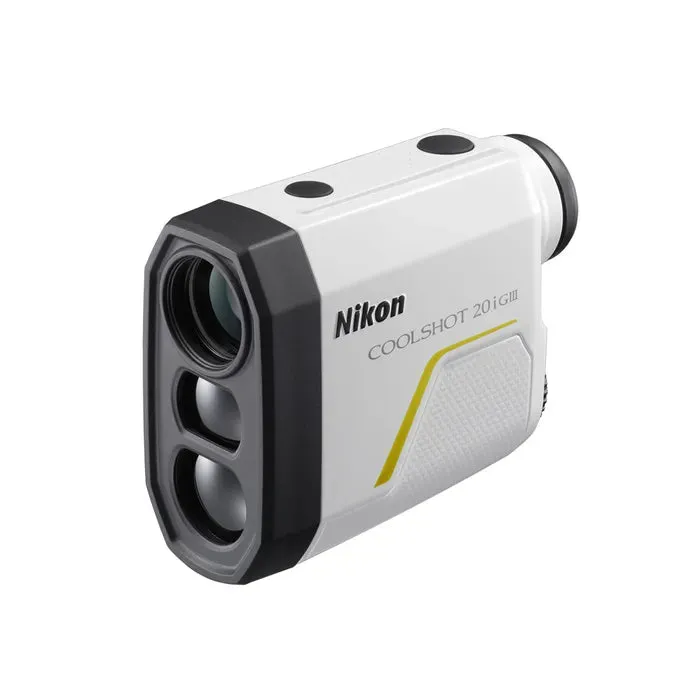

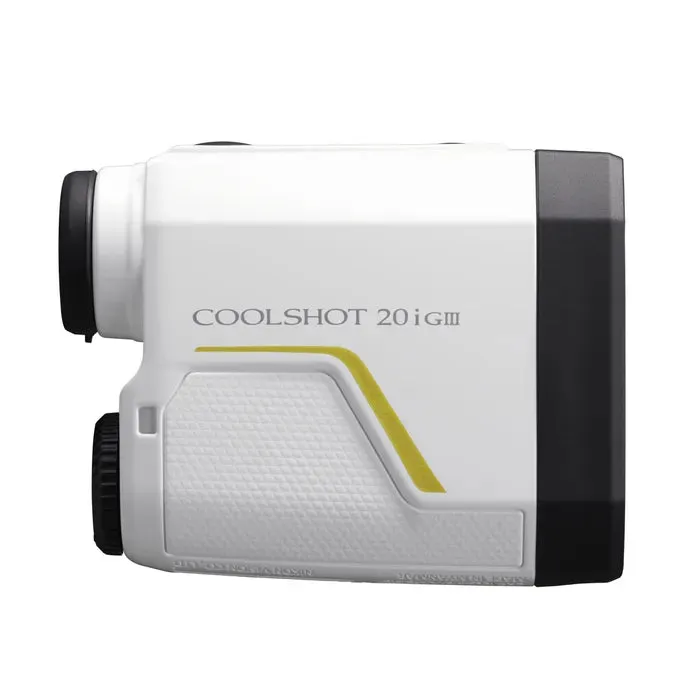

The COOLSHOT 20i GIII introduces the LOCKED ON QUAKE function that notifies the user via vibration that the distance to the flagstick has been measured. Compact and lightweight at approximately 130g the laser rangefinder is a boon for users seeking agility and accuracy.

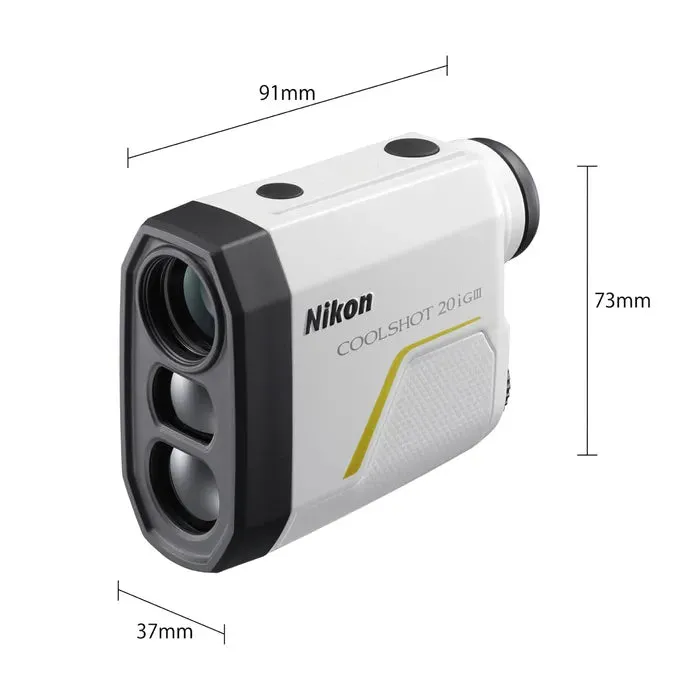

| Dimensions (D x L) (mm) | 91 x 73 x 37 / 3.6 x 2.9 x 1.5 |
| Electromagnetic Compatibility | FCC Part15 SubPartB class B EU: EMC directive AS/NZS VCCI class B CU TR 020 ICES-003 GB: Electromagnetic Compatibility Regulations |
| Laser Classification | IEC60825-1: Class 1M/Laser Product FDA/21 CFR Part 1040.10: Class I Laser Product |
| Eye Relief (mm) | 16.7 |
| Exit Pupil (mm) | 3.3 |
| Actual Field of View (°) | 6 |
| Finder: Effective Objective Diameter (mm) | 20 |
| Accuracy | ±1m (shorter than 100m) ±2m (100m and over) |
| Distance Display (Increment) | 1m |
| Measurement Range | 5~730m |
| Power Source | CR2 lithium battery × 1 (DC 3V) Automatic power shut-off (after approx. 8 sec. unoperated) |
| Weight (g) (Body Only)* | 130 / 4.6 |
| Magnification (x) | 6x |
| Diopter Adjustment | ±4 m-1 |
| Beam Divergence (MRAD) | Vertical: 2.5 Horizontal: 0.2 |
| Operating Temperature | -10 — 50/14 — 122 |
| Operating Humidity | 80 or less (without dew condensation) |
| Output (W) | 15.2 |
| Pulse Duration (NS) | 20 |
| Battery Life | Approx. 10 000 times (at approx. 20°C) *This figure may differ according to conditions such as temperature and other factors. Use only as a guide |
| Guide for Maximum Measurement Distance to a Flagstick* | 270m |
| Waterproof Structure | 905 |
