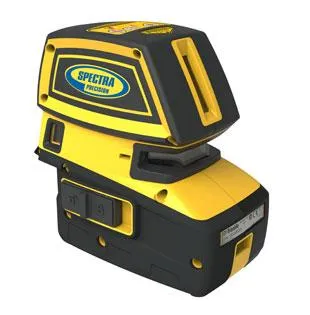

Spectra Precision LT52R Red 5 Beam Point & Line Laser Level
Product overview

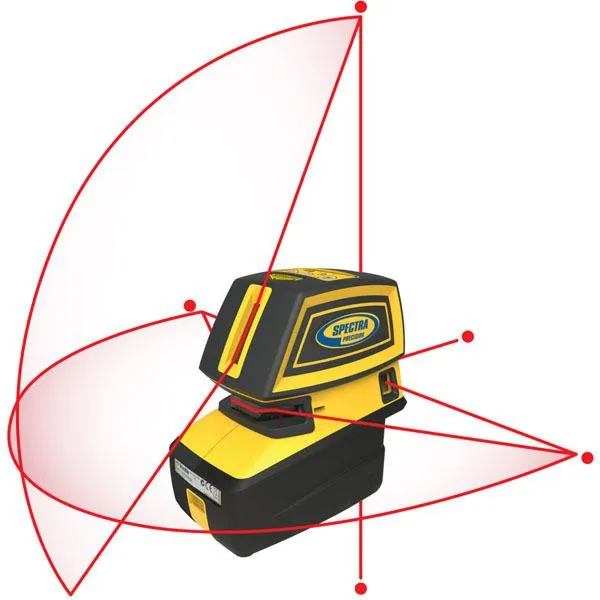

Eliminating the need to purchase two tools, the Spectra LT52 Point and Cross Line Laser Level is a versatile construction device for plumbing, leveling, aligning and squaring. This laser level projects five laser pointers at 90-degree angles to each other and two cross line beams. It measures up to 100 feet for lines and 200 feet for points. In addition, the combination of points and lines can be chosen using the convenient two-button keypad.
The Spectra LT52 multi-line laser is accurate within ±1/8-inch at 50 feet and self-leveling within ±3 degrees. If this construction laser is out of level, a beam flashes as an indication. Automatic leveling can be disabled and the unit can be switched to manual mode for tasks that require the laser to be set at an angle. This makes the LT52 point and crossline laser ideal for horizontal and vertical alignment, wall layout, acoustic ceiling installation, point transfer up and down, wall and floor tiles, finish carpentry and 90-degree squaring.
The LT52 self-leveling line laser is extremely robust and can sustain falls onto hard surfaces up to three feet. This combo dot and line laser is also IP54-rated for protection against dust and water splashes. It is powered by a Lithium-ion battery that lasts up to 40 hours for points and 16 hours for lines.
Features
- Eliminates the need for contractors to purchase two tools by combining a 5-beam pointer and a crossline laser into one product
- Automatic self-leveling assures accuracy and fast setup
- The versatile tool does multiple jobs - set it up once and work plumb, level, and square in the whole area
- The industry’s brightest crosslines and points for easy viewing in all conditions – points are visible up to 200 feet (60 m)
- Wide 210° horizontal line intersects side points; Vertical up beam intersects up point
- Down point clears floor track, no accessory required
- Rechargeable Lithium-Ion batteries provide up to 16 hours operating time - huge savings on battery cost compared to alkaline models and are ecologically friendly
- 3-year instant exchange warranty minimizes downtime
- Water, mud, and shock resistant, able to withstand a 3-foot (1-meter) drop onto concrete... IP54 rated
- HR220 receiver can be added for exterior applications for maximum job site versatility
Includes:
- LT52R Point and Crossline Laser
- Magnetic Mounting Bracket
- Red Target
- Lithium Battery and Charger
- Hard Carrying Case
Specifications
| General | |
| Weight | 1.5 lbs. (0.68 kg) |
| Laser Type | 635 nm <1mW |
| Dimensions | 5.7 x 3.0 x 5.9 in (14.5 x 7.8 x 13.8 mm) |
| Laser Class | 2 |
| Measuring Capabilities | |
| Leveling Accuracy | ±1/8 in. at 50 ft (3 mm at 15 m) |
| Working Range | Points: up to 200 ft (60 m); Lines: up to 100 ft (30 m) |
| Self-Leveling Range | ±3 degrees |
| Range with Receiver | up to 250 ft (80 m) |
| Number of Points | 5 |
| Number of Lines (Planes) | 2 |
| Beam Direction | up, down, forward, right, left |
| Battery/Power | |
| Operating Temperature | 14°F to 113°F (-10°C to 45°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Operating Time | Points: 35-40 hours; Lines: 12-16 hours |
| Power Source | Lithium-ion rechargeable |
| Battery Level Indicator | yes |
| Functions | |
| Plumbing Up and Down | yes |
| Setting out Right Angles | yes |
| Horizontal Leveling | yes |
| Vertical Aligning | yes |
| Vertical and Horizontal Aligning | yes |
| Aligning at an Angle | yes |
| Features | |
| Tripod Thread | 1/4-20 |
| Environmental Class | IP54 (dust and splash-water protected) |
| Self-Leveling | yes |
